Metal fabrication
Send us your drawings. We cut, form, machine, weld and finish in our own Riyadh workshop — one-off parts through production runs.
Send us your drawings. We cut, form, machine, weld and finish in our own Riyadh workshop — one-off parts through production runs.
Cutting through finishing happens in the same workshop, so parts do not wait on a third party and tolerances do not drift between suppliers.

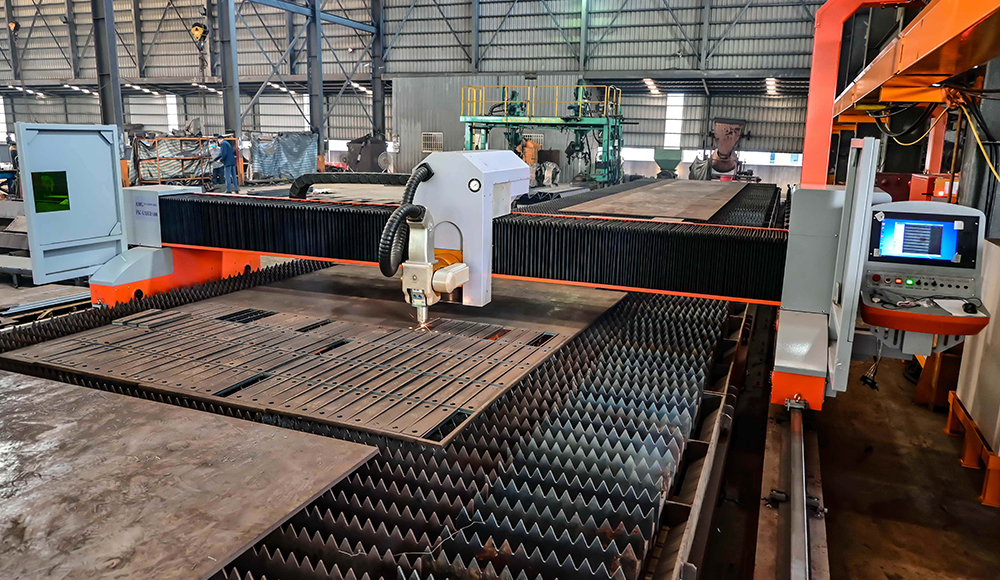

6000 × 2500 mm bed, 20 kW fiber. Mild steel to 40 mm, stainless to 30 mm.
Capacity & materials →6000 × 2500 mm bed, plate to 50 mm — the economical route for thick structural plate.
Capacity & materials →3000 × 1500 mm bed, to 100 mm, cold cut with no heat-affected zone.
Capacity & materials →3200 mm, 175 ton press brake with CNC back gauge for repeatable forming.

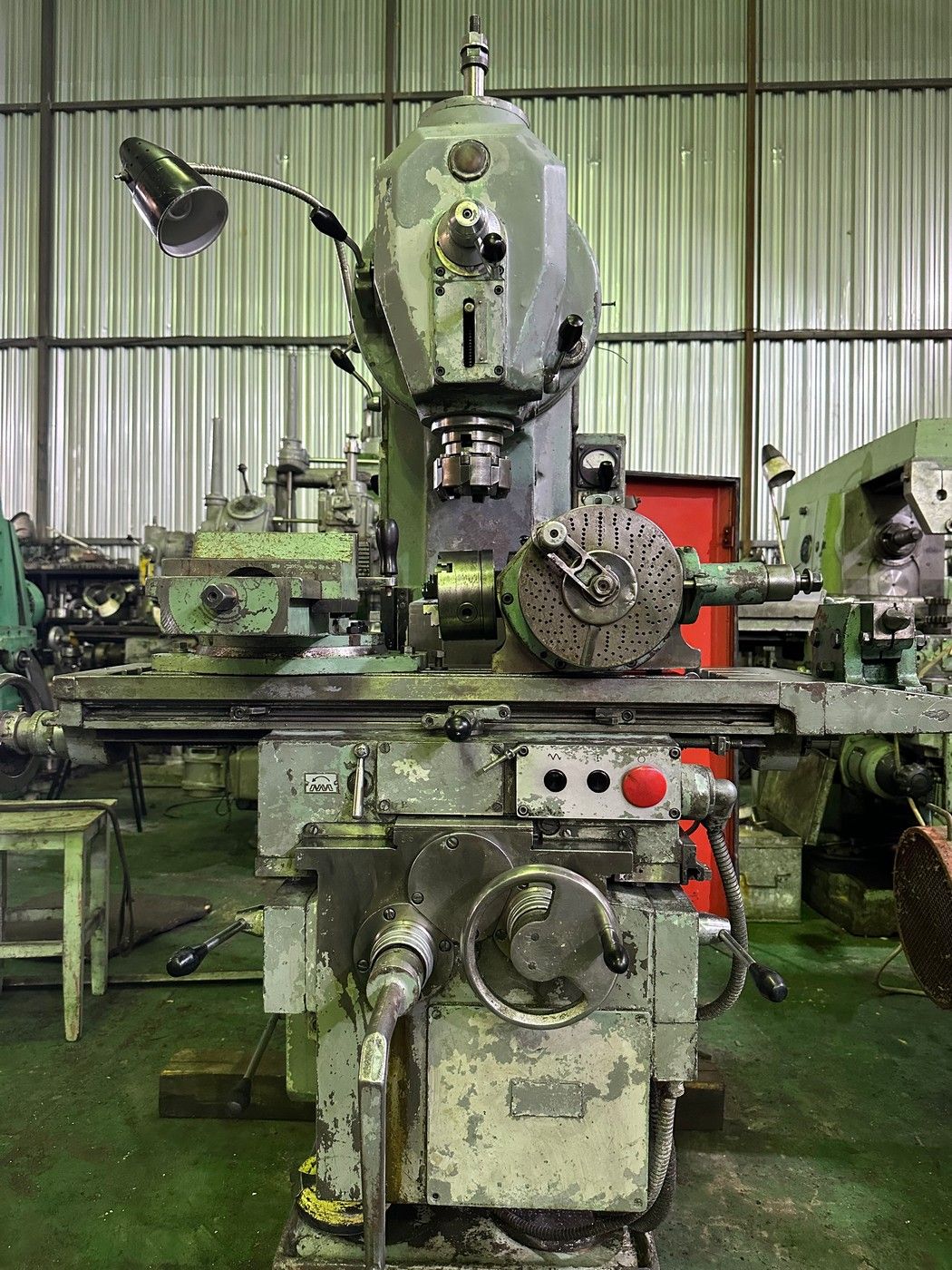

Capacity & materials →Milling and turning for spigots, base plates, bushes and fitted components.
Capacity & materials →TIG for stainless and aluminum, MIG for structural steel, in shop or on site.
Capacity & materials →Cylindrical and conical rolling to 2000 mm width, minimum radius from 200 mm.
Holes, slots, countersinks and threaded fixings placed in the flat before forming.
Edge break, linishing and prep so parts arrive ready to install or coat.
Mirror and brushed finishes on stainless, matched across a run.
| Material | Forms | Max laser | Processes | Finishing |
|---|---|---|---|---|
| Mild steel | Sheet, plate, tube & section | 40 mm | Cut · bend · weld · machine | Powder coat or galvanize |
| Stainless 304 | Sheet, tube & bar | 30 mm | Cut · bend · weld · polish | Mirror, brushed or satin |
| Stainless 316 | Sheet, tube & bar | 30 mm | Cut · bend · weld · polish | For wet, coastal & exterior |
| Aluminum | Sheet, extrusion & plate | 25 mm | Cut · bend · weld · machine | Anodize or powder coat |
| Galvanized sheet | Sheet | 6 mm | Cut · bend · punch | Coating intact where unwelded |
| Brass & copper | Sheet & bar | 12 mm | Cut · form · machine · polish | Lacquer or natural patina |
Cutting, forming and machining are run by our own staff on our own equipment. Nothing critical is subcontracted, which is why we can commit to a date and hold it.
DXF, DWG or STEP for cut parts; PDF drawings for fabricated assemblies. Tell us material, thickness, quantity and finish.
We review for manufacturability and come back with price and lead time — flagging anything that will not form or weld as drawn.
Nested, cut, formed and finished in our own workshop. Welded assemblies are fitted and checked before final pass.
Collect from the workshop in Riyadh or we deliver to site anywhere in the Kingdom.
Parts and assemblies for your own builds — cut to drawing, delivered to site, quoted per package.
Supply-only or supply and installOverflow cutting, forming and machining when your own shop is at capacity or lacks the process.
Trade rates on repeat workReplacement parts, guarding, platforms, brackets and repairs — reverse-engineered from a sample if there is no drawing.
One-off through production runsDXF, DWG or STEP for cut parts. PDF drawings for fabricated assemblies. If you only have a sketch or a photo of the part, send that — we will tell you what else we need.
